Power Management System

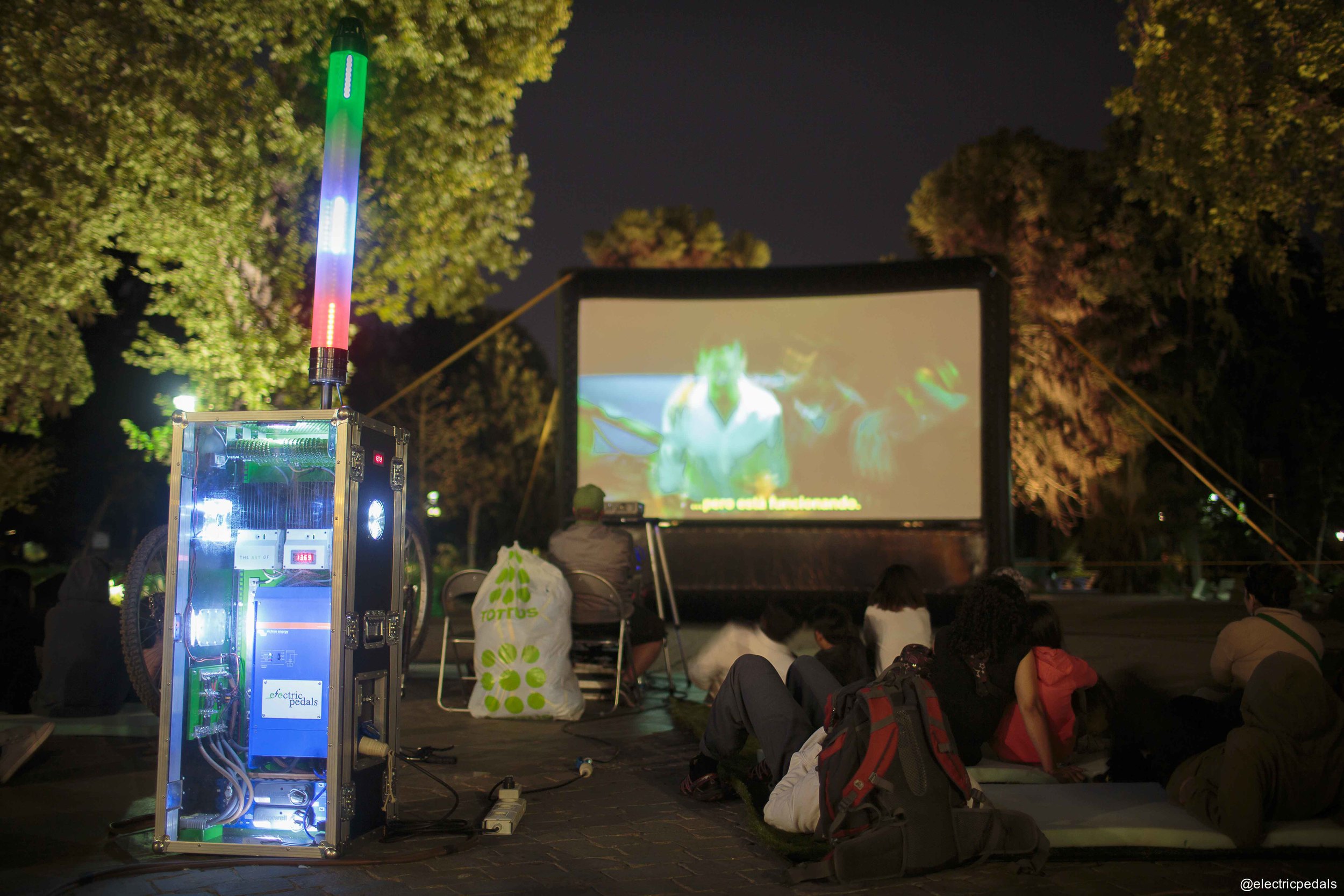

At the heart of our Big Bicycle Cinema is the Quark Power Station which efficiently manages the power produced by up to 30 bicycle or hand generators.
It has no batteries, rather uses super-efficient Ultra-Capacitors to store and smooth the electricity generated before providing a safe, clean 230Volts AC power source.
- Enclosed in heavy duty flight case
- Pure sine-wave inverter
- Output voltage: 230 VAC ±2%
- 2000 Watts Cont. output power
- Input Current 200A Max / 30 People
- Super Efficient
- Heavy Duty Components
- Cinema: Used in conjunction with any of our Power Generation equipment, the Quark can be used to power an outdoor cinema for up to 1000 people.
- Music Stage: Can be in conjunction with any of our Generation equipment to power a small music stage
- Phone Charging: Very popular at outdoor events as an alternative to fuel generators. Can be used to power hundreds of mobile phones.
- Education: Powering devices with different power requirements can be felt immediately by the user. Great for illustrating power demands and the energy required to power common household appliances and devices.
- Inverter output 2000 Watts continuous (peak power 4000 Watts)
- Inverter Max. efficiency 92%
- 2000Farad Ultra Capacitor
- AC Output: 2 x 16A 230V SP CEE Form Socket
- DC Input/Output: 2 x 175A DC Grey SB175 Anderson
- Arduino based voltage management
- 2x 250A Fuses
- Earth Point
- RCD protection
- 12V Charge connection
- 10mm clear polycarbonate front panel
- 12mm wall touring grade 'hexagip' flight case
- 2x Dish handles with backing plates are fitted on the sides
- Aluminium edging on all external edges and interlocking between lid and sleeve
- Dimensions (WxDxH): 1700mm x 510mm x 500mm
- Weight 60kg
- Please get in touch for a quote or more information.
