Pedal Powered Hub Generator

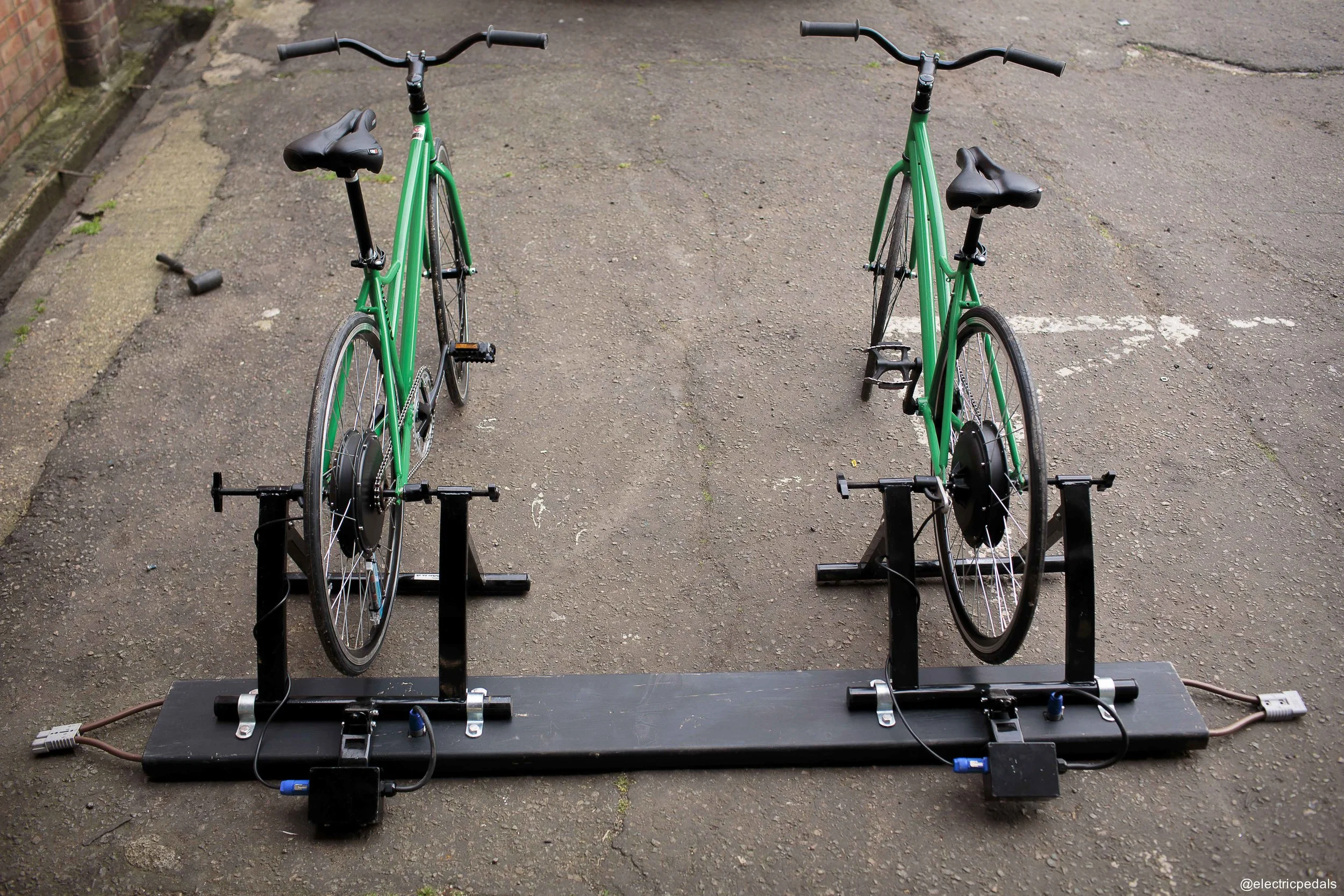

A direct drive pedal powered generator built around a 3-phase 350W hub motor. The system delivers high electrical output with minimal mechanical complexity and friction, providing consistent performance across a wide cadence range for events, installations and permanent systems.
Supplied as a complete generator unit with modified training stand and integrated rectification, the hub motor generator is designed for reliable live power production and rapid deployment.
Specification
Output
Direct DC output
Integrated bridge rectifier within stand
60–120W typical continuous output
Up to 600W+ peak depending on rider input
Wheel Sizes
Available in 700c, 26″ and 20″ wheel formats
Drive System
Direct drive rear hub motor generator
Sealed multi bearing hub assembly
Smooth low resistance pedalling
Unregulated voltage output across wide cadence range
Construction
Supplied with dedicated training stand
Modified support cups to accommodate oversized hub nuts
Rubber feet for stability and floor protection
Powder coated steel stand and supports
30cm Neutrik speakon output tail
Integration
Compatible with all Electric Pedals power management systems
