Human Powered Hand Crank Generators

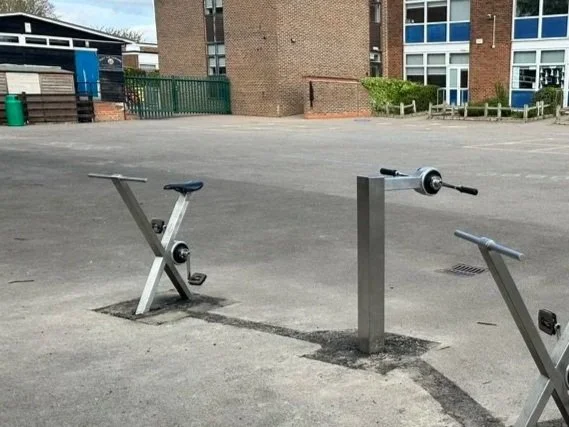

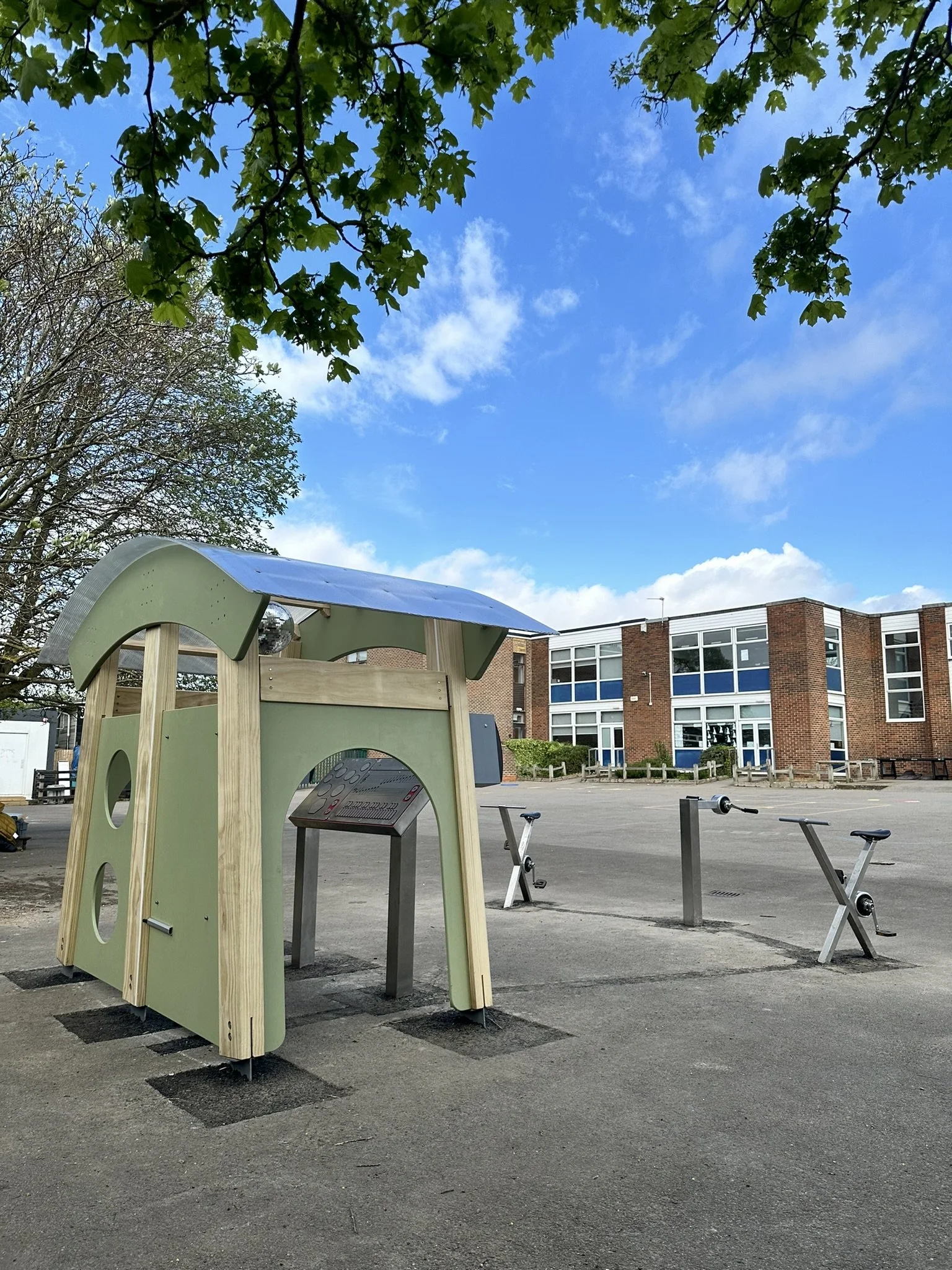

A compact hand crank generator that converts human effort into usable DC electrical power using a bicycle bottom bracket motor. Designed for continuous public use, the system delivers smooth, reliable live energy for events, installations and education environments where power must be generated on demand and clearly understood.
Specification
Output
Direct DC unregulated output
Integrated blocking diode
30–80W typical continuous output
Up to 350W+ peak depending on work
Drive System
IP rated bottom bracket motor used as generator
Dual hand crank configuration
Multi bearing supported spindle
Direct drive for consistent resistance and stable output
Construction
Powder coated steel pedestal
Heavy duty crank arms and handles
Sealed motor housing
Sealed bearings throughout
Floor or wall mounted base for stability
Integration
Compatible with all Electric Pedals power management systems
